| Video |
|---|
| Gain | Unity |
| Resolution range | Up to 2560x1600 @ 60 Hz* or
4K (4096x2160) @ 24 Hz, UHD (3840x2160) @ 30 Hz,
UHD @ 60 Hz with 4:2:0 chroma subsampling
* reduced blanking |
| Signal type | Single-link HDMI (or DVI-D or DisplayPort) |
| Color bit depth | 8, 10, or 12 bits — subject to the maximum data rate limit |
| Maximum data rate | 8.91 Gbps (2.97 Gbps per color) |
| Maximum pixel clock | 300 MHz (600 MHz for 4K rates with 4:2:0 chroma subsampling) |
| Formats | RGB and YCbCr digital video |
| Standards | DisplayPort 1.1, DVI 1.0, HDMI 1.4a, HDCP 1.4 |
|

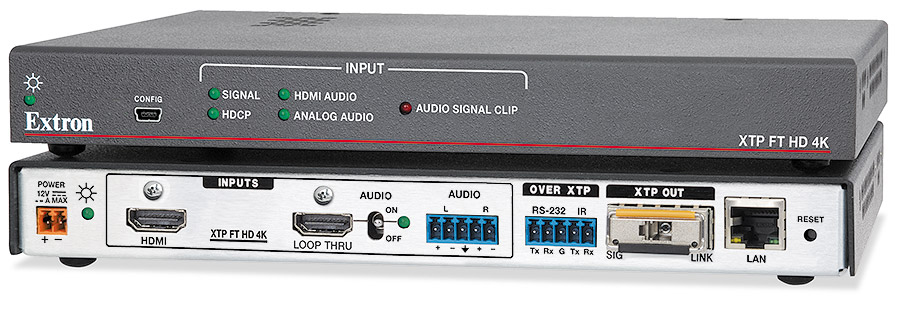

| Video input and loop-through |
|---|
| Number/signal type | 1 single link HDMI (or DVI-D or DisplayPort) input
1 single link HDMI (or DVI-D) loop-through |
| Connectors | 2 female HDMI type A: 1 input, 1 loop-through |
|

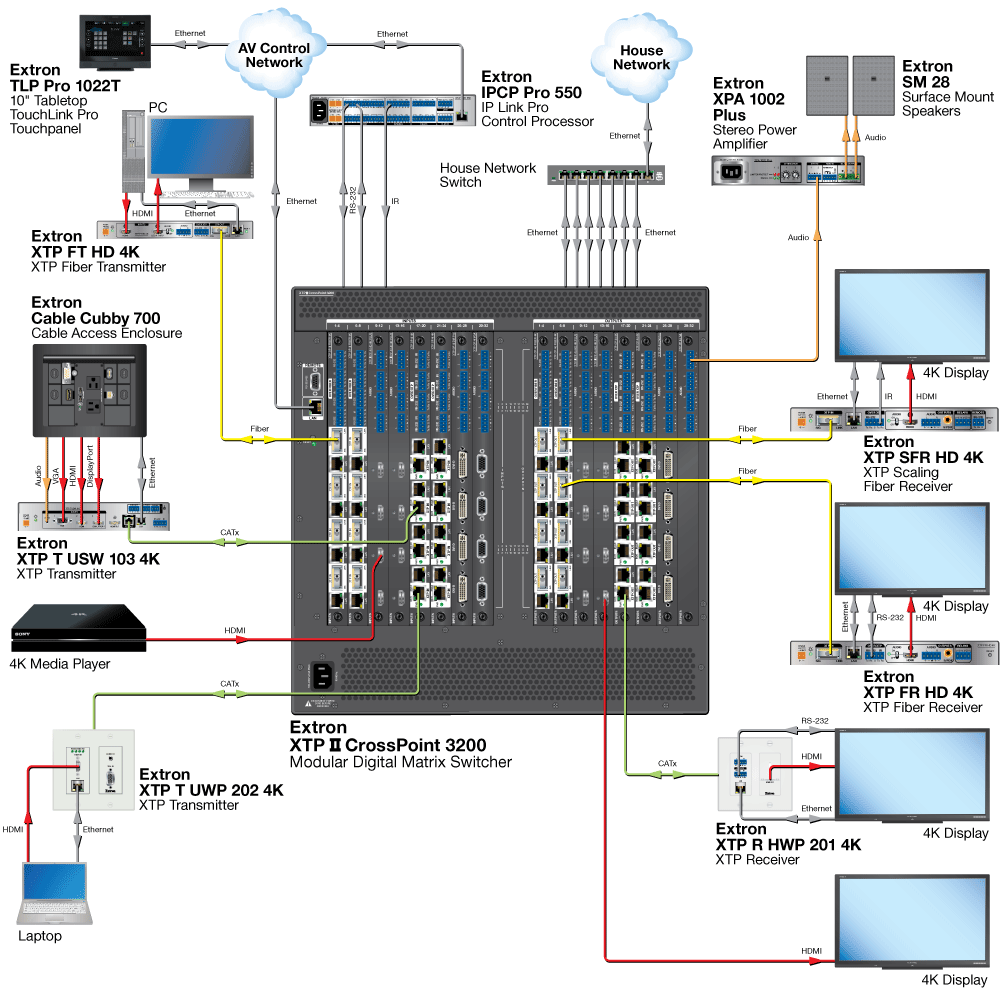

| Optical fiber interconnection between transmitter and receiver |
|---|
| Number/signal type | 1 set of proprietary signals |
| Connectors | 1 LC fiber connector |
| Operating distance |
|
| NOTE Operating distance is approximate. These are typical maximum distances that may vary depending on factors such as fiber type, fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. |
| Singlemode | 10 km (6.21 miles) with singlemode cable |
| Multimode | 400 m (1312') with 50 μm OM3 2000 MHz bandwidth laser optimzed multimode cable
700 m (2297') with 50 μm OM4 4700 MHz bandwidth laser optimzed multimode cable |
| NOTE Multimode units are compatible with OM1 and OM2 multimode cables, but at reduced operating distances. |
| Nominal peak wavelength |
|
| Singlemode | 1490 nm, 1550 nm, 1310 nm |
| Multimode | 850 nm, 980 nm, 780 nm |
| Data rate | 8.5 Gbps |
| Transmission power |
|
| Singlemode | -6 dBm, typical |
| Multimode | -5 dBm, typical |
| Maximum receiver sensitivity |
|
| Singlemode | -15 dBm, typical |
| Multimode | -13 dBm, typical |
| Optical loss budget |
|
| Singlemode | 9 dB, maximum |
| Multimode | 8 dB, maximum |
|
| Audio |
|---|
| Gain | Unbalanced output: 0 dB; balanced output: +6 dB |
| Frequency response | 20 Hz to 20 kHz, ±0.5 dB |
| THD + Noise | <0.1%, 20 Hz - 20 kHz at nominal level |
| S/N | >90 dB, at maximum balanced output (unweighted) |
| Crosstalk | ≤-80 dB @ 1 kHz, fully loaded |
| Stereo channel separation | >80 dB @ 1 kHz |
| Sampling rates | 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz |
| Bit depths | 16, 20, 24 bit |
|
| Audio input |
|---|
| Number/signal type | 1 analog stereo, balanced/unbalanced or
1 digital audio, de-embedded from HDMI |
| Connectors | (1) 3.5 mm captive screw connector, 5 pole
1 female HDMI type A (shared with video input) |
| Source formats | LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos?, Dolby TrueHD, Dolby Digital Plus?, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio?, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel, analog stereo |
| Impedance | 10k ohms, unbalanced, 20k ohms balanced |
| Nominal level | +4 dBu (1.23 mVrms) balanced, -10 dBV (316 mVrms) unbalanced |
| Maximum level | +21 dBu balanced, +15 dBu unbalanced |
| Input gain adjustment | -18 dB to +24 dB, 1 dB steps, adjustable |
| NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
| Communications — transmitter |
|---|
| USB control ports | 1 front panel female mini USB B |
| USB standards | USB 2.0, low speed |
| Program control | Extron control/configuration program for Windows?
Extron Simple Instruction Set (SIS?) |
|
| Communications — external device (pass-through, unidirectional or bidirectional) |
|---|
| Serial control pass-through port | RS-232 (+5 V) via a (1) 3.5 mm, 5 pole captive screw connector (uses 3 poles)
(connector is shared with the IR control port) |
| Baud rates | Up to 115200 baud |
| Protocol | Data bits = 5 - 8
Stop bits = 1 or 2
Parity = odd, even, none
Flow control = XON, XOFF, none |
| Serial control pin configuration | 1 = Tx, 2 = Rx, 3 = GND |
| IR control port | (1) 3.5 mm, captive screw connector, 5 pole (uses 3 poles)
(connector is shared with the RS-232 control port)
TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 56 kHz |
| IR control pin configuration | 3 = GND, 4 = IR Tx, 5 = IR Rx |
| Ethernet pass-through port | 1 female RJ-45 connector |
| Ethernet data rate | 10/100Base-T, full duplex with autodetect |
|
| General |
|---|
| Power supply | External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A, 18 watts |
| Power consumption |
|
| Device | 8.1 watts |
| Device and power supply | 10 watts |
| Temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling | Convection, vents |
| Thermal dissipation |
|
| Device | 26.2 BTU/hr |
| Device and power supply | 32.8 BTU/hr |
| Mounting |
| Rack mount | Yes, with optional 1U high rack shelf |
| Furniture mount | Yes, with optional under-desk mounting kit |
| Enclosure type | Metal |
| Enclosure dimensions | 1.0" H x 8.75" W x 6.0" D (half rack wide)
(2.5 cm H x 22.2 cm W x 15.2 cm D)
(Depth excludes connectors.) |
| Product weight | 1.6 lbs (0.7 kg) |
| Vibration | ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance | CE, c-UL, UL, IEC 60825-1, C-tick, FCC Class A, ICES, VCCI
Complies with the appropriate requirements of RoHS and WEEE. |
| Product warranty | 3 years parts and labor |
| Everlast power supply warranty | 7 years parts and labor |
| NOTE All nominal levels are at ±10%. |
| NOTE Specifications are subject to change without notice. |
