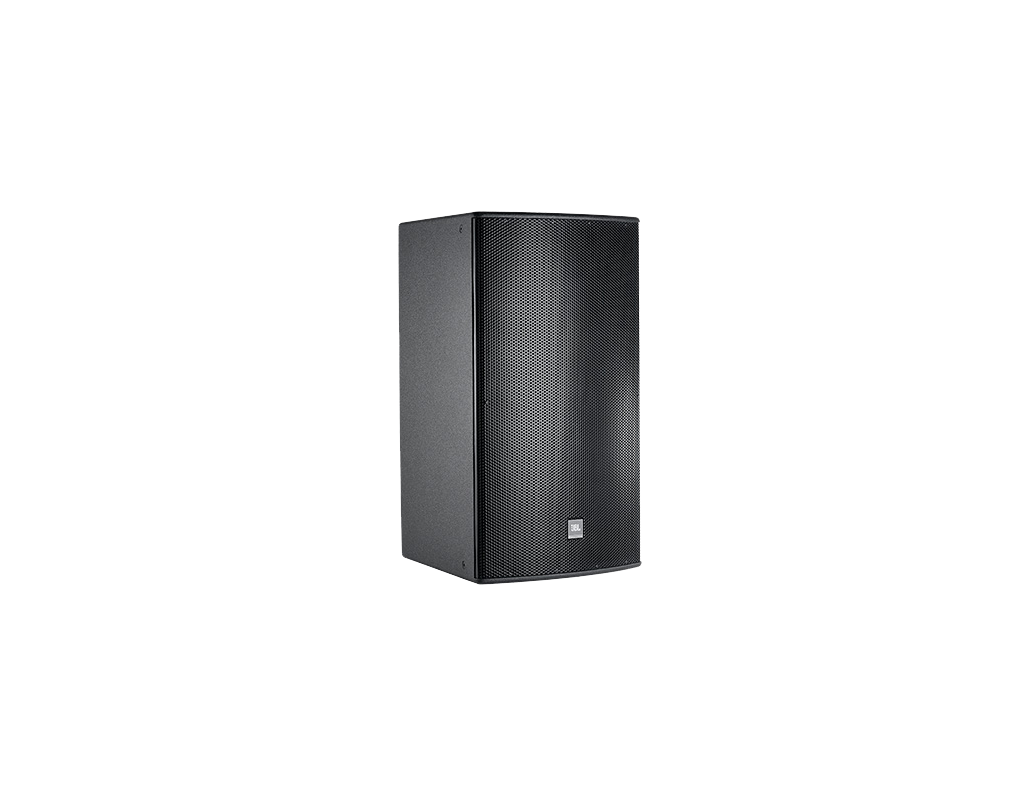

Frequency Response (±3 dB)

45 Hz – 18 kHz

Coverage Pattern

/64: 60° x 40°, rotatable waveguide

/95: 90° x 50°, rotatable waveguide

Directivity Index (DI)

13 dB

Crossover Modes

Tri-amp/Bi-amp switchable

Crossover Frequencies

300 Hz and 2.3 kHz

Transducer Power Rating (AES)

LF: 1000 W (4000 W peak), 2 hrs

750 W (3000 W peak), 100 hrs

MF: 350 W (1400 W peak), 2 hrs

HF: 100 W (400 W peak), 2 hrs

Long-Term System Power Rating (IEC)

LF: 600 W (2400 W peak), 100 hrs

MF/HF: 200 W (800 W peak), 100 hrs

Maximum SPL

LF: 127 dB-SPL cont avg (133 dB peak)

Tri-amp mode:

MF: 133 dB-SPL cont avg (139 dB peak)

HF: 135 dB-SPL cont avg (141 dB peak)

Bi-amp mode:

MF/HF: 133 dB-SPL cont avg (139 dB peak)

System Sensitivity of Passive

MF/HF Section in Bi-amp mode: 108 dB SPL

Sections (1W @ 1m)

Nominal Impedance System Sensitivity

8 ohms

Low Frequency Driver

1 x JBL 2265H 380 mm (15 in ) Differential Drive? driver with 75 mm (3 in)

Sensitivity (1W @ 1m)

97 dB SPL

(Low Frequency)

Midrange Driver

JBL CMCD-82H Cone Midrange Compression Driver with integral 200 mm (8 in) diameter Differential Drive? dual voice coil internal driver

Sensitivity (1W @ 1m)

108 dB SPL

(Midrange)

High Frequency Driver

JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil

Sensitivity (1W @ 1m)

115 dB SPL

(High Frequency)

Enclosure

Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood

Suspension Attachment

13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware

Finish

Black DuraFlex? finish. White available upon request.

Grille

Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.

Input Connector

NL8 Neutrik Speakon? and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.

Environmental Specifications

Mil-Std 810; IP-x3 per IEC529.

Dimensions (H x W x D in vertical cabinet orientation)

967 x 561 x 657 mm

(38.1 x 22.1 x 25.9 in)

Net Weight

45.8 kg (101 lb)

Optional Accessories

M10 x 35 mm forged shoulder eyebolts with washers. Optional planar array frame kit. See AE Series Bracket Guide
